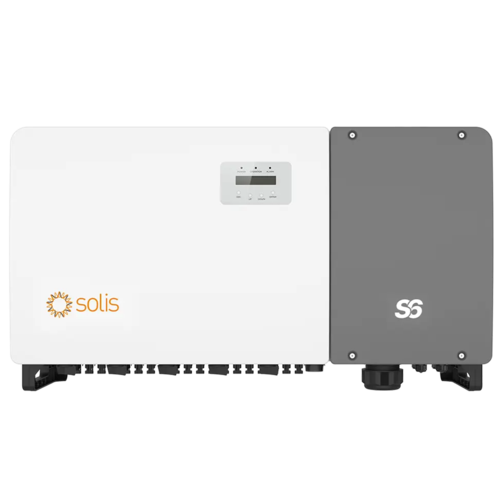

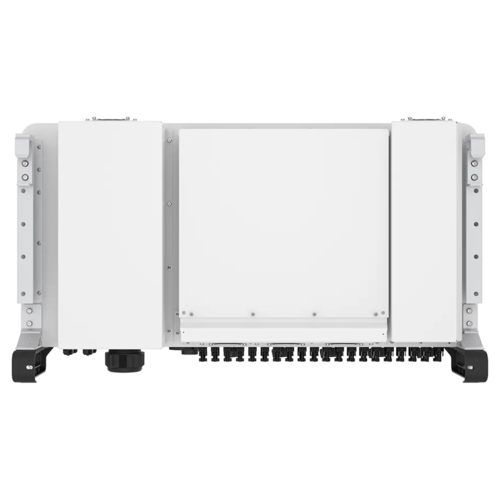

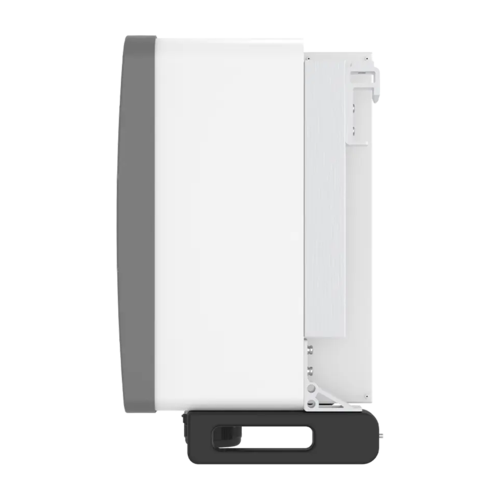

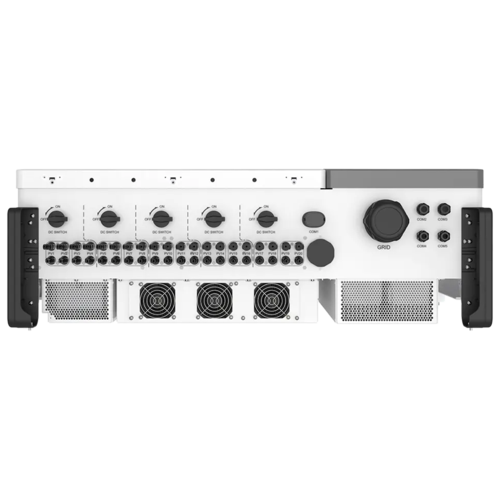

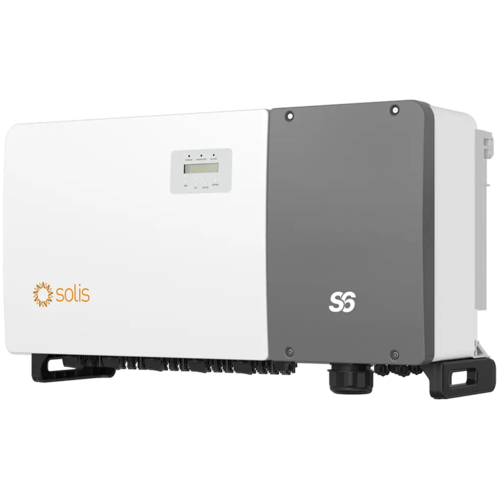

Solis S6-GC 125K three-phase series inverter

Solis S6-GC(100-125)K three-phase series inverter is a new S6 model, designed for C&I and utility PV projects. It supports input current up to 21A, making it perfectly compatible with various high-power PV panels. The inverter allows a maximum 150% DC/AC ratio, while supporting PLC communication, AC and DC cable design optimization, intelligent I-V curve scanning, and remote O&M functions. These features effectively reduce system costs, simplify O&M, and improve system efficiency—ideal for cost reduction and efficiency improvements in PV plant projects. Additionally, the product has an IP66 protection grade, ensuring durability in complex and harsh natural environments.

Features:

• IP66 > 150% DC/AC ratio
• Supports export power control
• 10 MPPTs, max. efficiency 98.7%
• DC side supports "Y" connector
• AFCI protection, proactively reduces fire risk
• Power line communication (PLC) (optional)
• Intelligent string monitoring, smart I-V curve scan
• Remote firmware upgrade with simple operation
• Globally recognised branded componentry for longer life
• String current up to 21A, perfectly matches large current bifacial modules
• Night time PID recovery function, increases overall system yield (optional)
