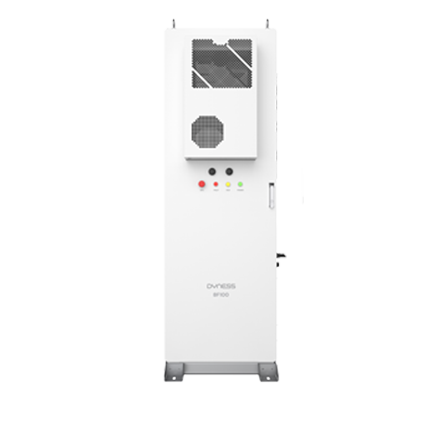

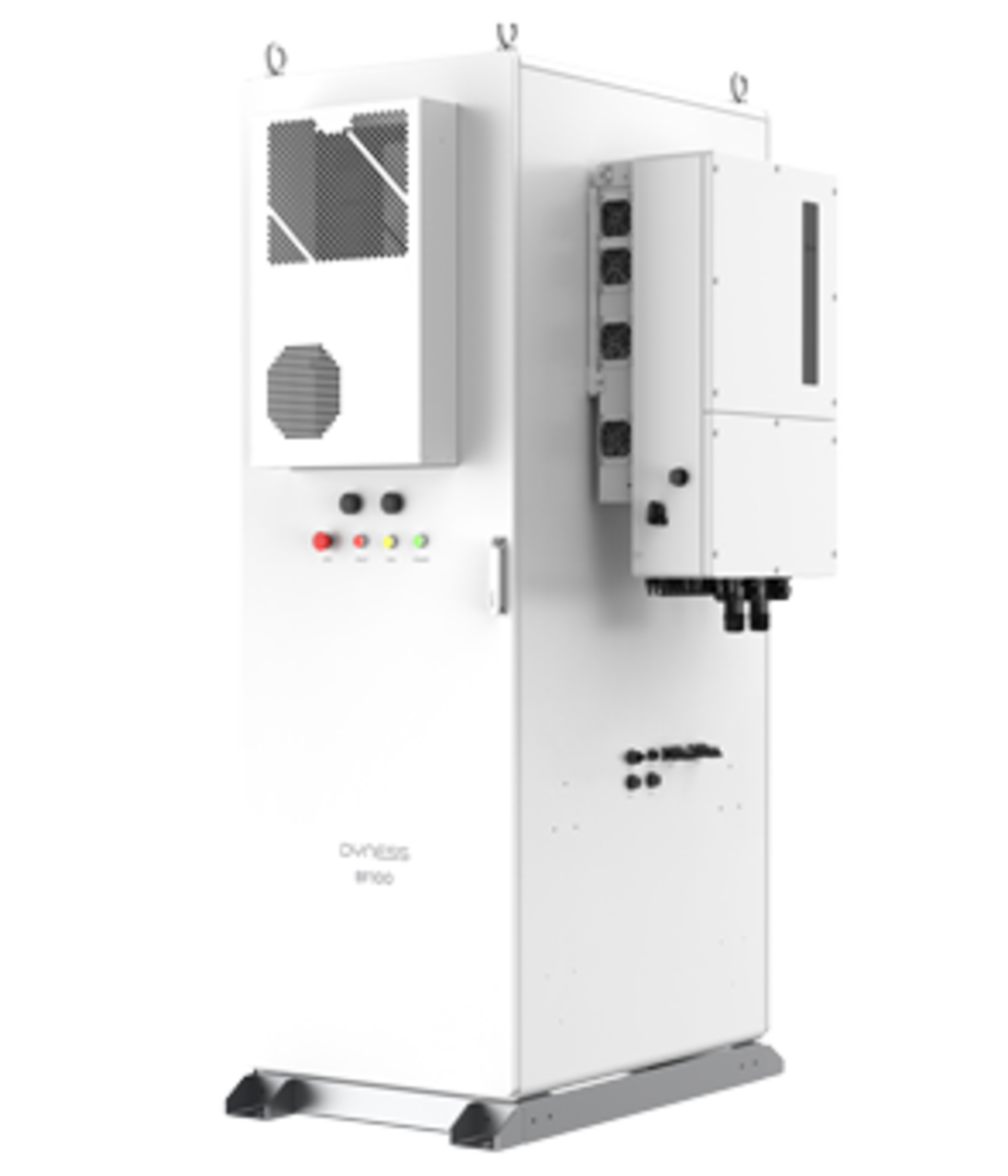

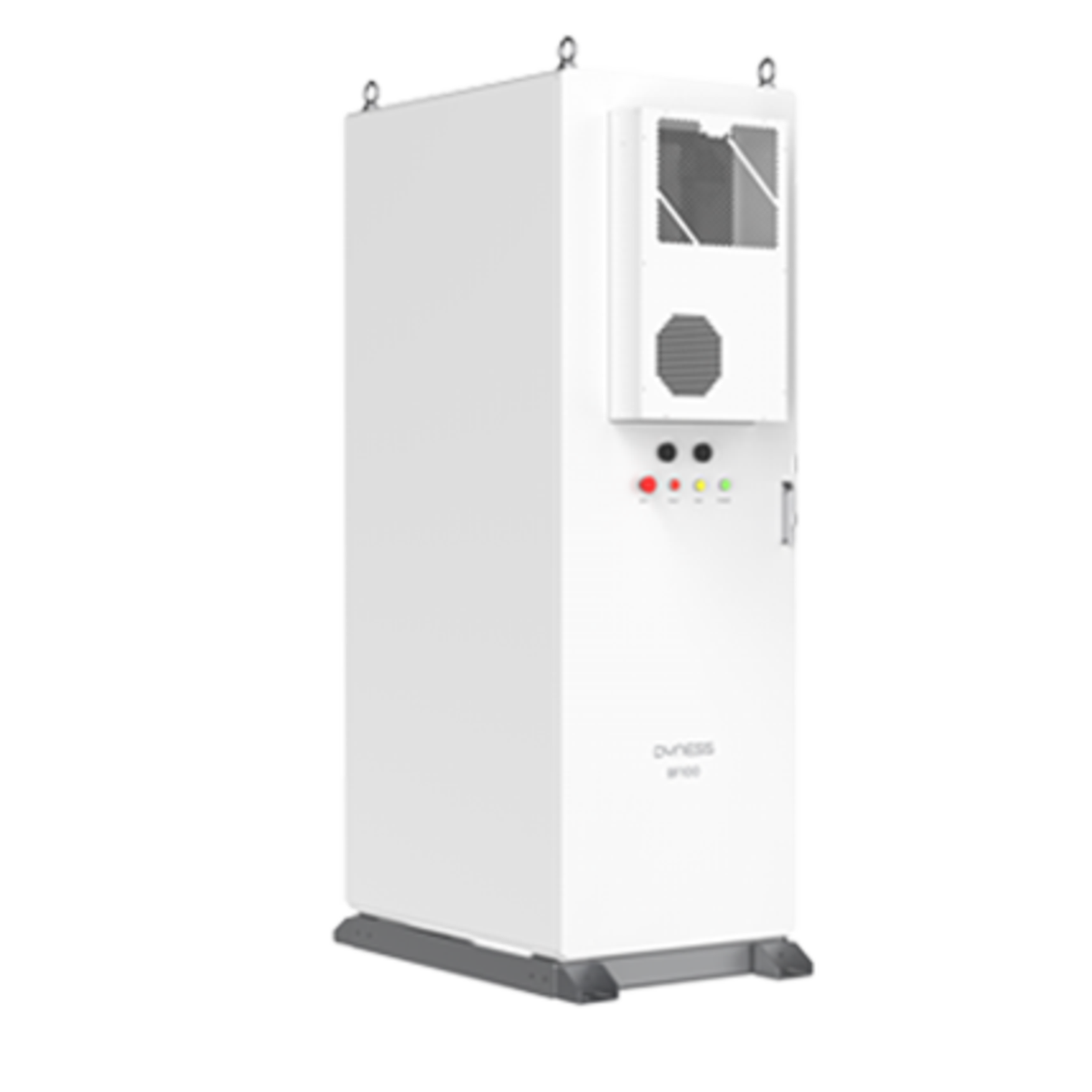

Dyness BF100-C100 (Outdoor Cabinet) 100kWh
Product Information
Product Description
Data Sheet Article numberBF100-C100
Product ref.15173
BrandDyness
ArtikelkategorierBattery Storage
Item weight1800
Battery Capacity (kWh)100
Battery Cell TypeLFP
Capacity (Ah)280
Backup power compatibleYes
BF100-100kWh Battery Storage System
The BF100-100kWh is a high-performance battery storage system offering ultimate safety, high efficiency, and flexibility for various energy needs. With its innovative design and advanced features, it is a reliable solution for modern energy demands.
Features
- Ultimate Safety: Fire prevention strategy with three-level detection and TMG for effective fire suppression even during power outages.
- High Efficiency: 280Ah LFP battery with high energy density and proprietary EMS for reduced energy consumption and improved charging and discharging efficiency.
- Flexible Expansion: Capacity of 71~100kWh per unit, with reserved DC expansion interface.
Specifications for BF100-100kWh
| Parameter | Details |
|---|---|
| Battery Type | LFP (LiFePO4) |
| Battery Capacity | 280Ah |
| Configuration | 1P16S |
| Rated Current | 140A (0.5C) |
| Max Current | 160A |
| Pack Quantity | One Cluster/7 Packs |
| Voltage Range | 324.8~403.2V |
| Capacity | 100kWh |
| Dimensions (W*D*H) | 725*1200*2258 mm |
| Weight | Approximately 1500kg |
| System Efficiency | 93% |
| Temperature Range | -20~50℃ (Derating above 45℃) |
| Humidity | 0~95% (non-condensing) |
| Protection Class | IP55 |
| Anti-Corrosion Grade | C3 (optional C5) |
| Noise Level | Less than 70dB |
| Altitude | 3000m (Derating above 2000m) |
| Cooling Method | Air Cooling |
| Fire Protection | Optional: Aerosol/Heptafluoropropane (FM-200)/Perfluorohexanone (Novec1230) |
| EMS Communication | Ethernet/RS485/CAN/USB |
| Standards | CE |
