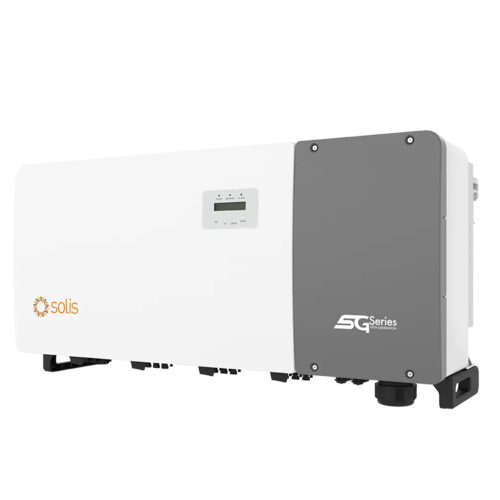

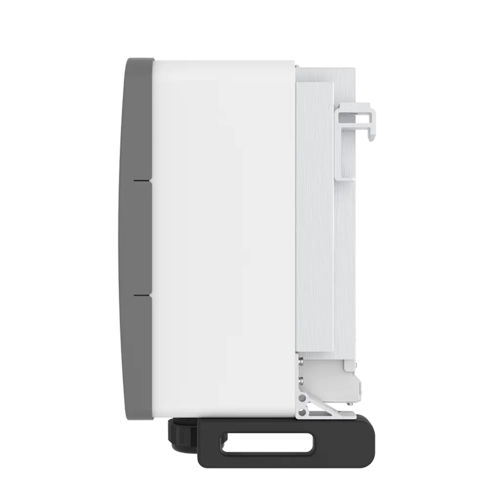

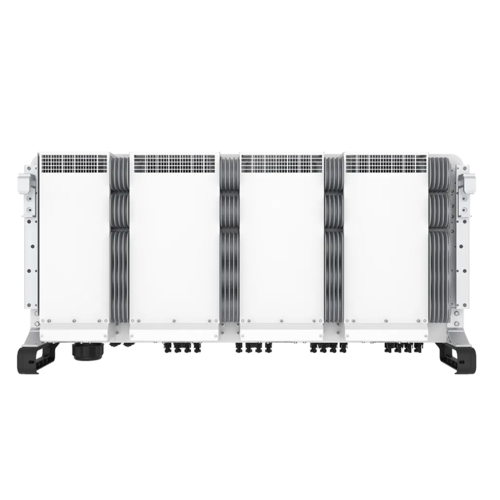

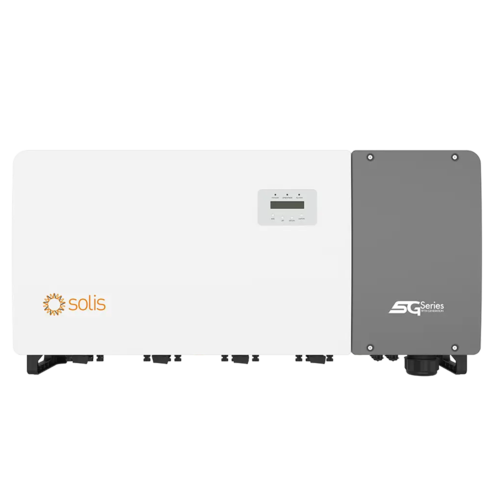

Solis 80K-5G-PRO three-phase series inverter

Solis-(80-110)K-5G-PRO three-phase series inverter is a new generation of Ginlong 5G models, designed to provide high-quality solar solutions for commercial and industrial consumers. The maximum input current for PV strings is up to 18A, making it compatible with various high-efficiency PV modules and supporting more than 150% DC oversizing. It delivers high efficiency, stability, and reliability. Compatible with RS485/PLC/Wi-Fi/GPRS communication modes. AC/DC interface optimization design. Strong cable compatibility. Convenient installation and cost-saving. Combined with a wide range of online O&M tools provided by the Solis cloud platform, it effectively reduces O&M costs and simplifies and enhances system efficiency.

Features:

• IP66 protection grade
• Night SVG function
• 6/8 MPPTs, max. efficiency 98.5%
• >150% DC/AC ratio
• Compatible with multi-window modules
• Remote firmware upgrade
• Power line communication (PLC) (optional)

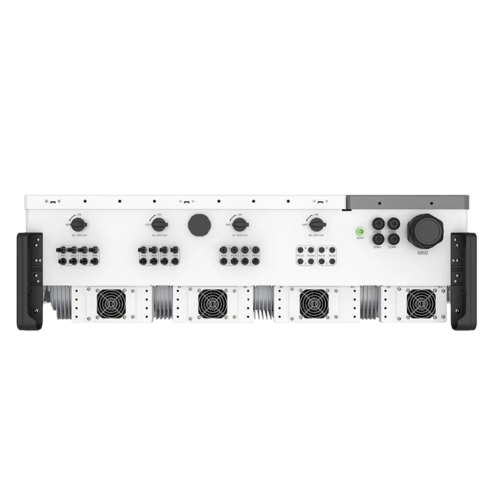

• Supports "Y" connector on DC side
• Built-in PID recovery for better module performance (optional)
• AFCI protection, proactively reduces fire risk
• Globally recognized branded components for longer life
• Intelligent string monitoring, smart I-V curve scanning
