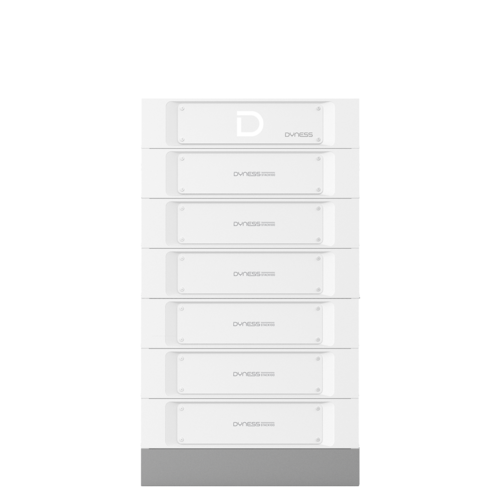

Dyness Battery Package Stack100 30,72 kWh, Energy Storage System

• System Capacity: per stack – 15.36-76.8kWh, expandable up to 921.6kWh with multiple stacks. For expansion with multiple stacks, the Dyness STACK100 - Expand module is required.
• Technology: LiFePO4 with built-in heating (-20 to +55 °C), integrated fire suppression system (aerosol), and quick connectors for easy installation. 1C discharge and charge (40Ah).
• Applications: Perfect for small to large residential installations, as well as commercial and industrial applications such as restaurants, warehouses, and agriculture.

Features

• • Built-in heater allows operation in cold environments down to -20 °C
• • Independent fire suppression unit – Each module has a built-in aerosol fire suppression system that activates within 5 seconds at high temperature, minimizing fire risk
• • 1C discharge & built-in air cooling system – Efficient energy usage with stable cooling for longer lifespan
• • Capacity range – Simple unit capacity from 15.36kWh to 76.8kWh, scalable up to 921.6kWh via parallel connection
• • Quick installation – Total installation time ≤1 hour with 30-minute fast module installation
• • Modular design – Plug-and-Play with frameless stacking to save space and costs
• • Flexible layout – Adapts to various spaces and scenarios (restaurants, warehouses, agriculture, etc.)
• • Efficient charging/discharging – Max 86.4kW for smooth operation and cost savings during peak electricity usage
• • New cooling technology – Internal design that evens out temperatures (≤3℃ difference) and increases battery lifespan by 20%
