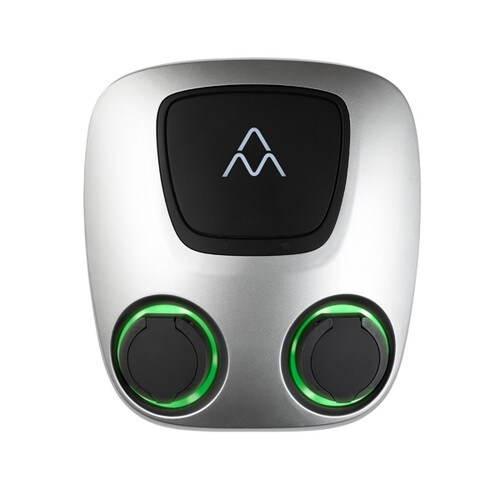

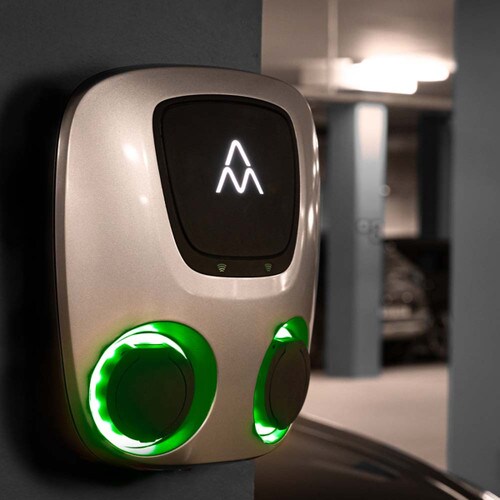

Charge Amps Aura 2x22kW – For public charging stations or individuals needing two charging points

Charge Amps Aura 2x22kW is ideal for larger installations, perfect for public charging stations and individuals needing multiple charging points. The robust construction allows two vehicles to charge simultaneously, with up to 22 kW per outlet.

Features

• Robust construction: IK10 rated, withstands harsh conditions and is resistant to impacts and vandalism.
• Daisy chaining: Easy to install in a chain, ideal for large installations.
• Two charging outlets: Charges two cars simultaneously with up to 22 kW per outlet, optimal for high load.
• Integrated safety features: Built-in personal and residual current devices, as well as separate RFID readers for each outlet.
• Load balancing: Optimizes power with built-in phase allocation and phase rotation, ensuring efficient charging.
• Eco-friendly design: Made from recycled aluminum and approved for tax deductions.

Installation and Configuration

Aura is designed for easy daisy chaining, making it ideal for larger facilities. It supports 16 mm² feed both in and out of each unit and features dual RJ45 ports for easy LAN "daisy chaining." Installers have free access to Charge Amps Academy with instructional videos and guides for installation and configuration.

Integrated Solutions and Connectivity

Compatible with OCPP 1.6J, it can be connected to any cloud service and integrated with Charge Amps' back-end system. The flexibility makes it easy to use third-party solutions, such as billing in company parking lots or housing associations. Supports WiFi and full control via an app for easy management and monitoring.

Green Charging with Solar Panels

Optimal for green charging with Charge Amps Amp Guard as a power monitor. The integrated "Green Charging" feature allows vehicles to be charged with electricity from solar panels. Amp Guard detects the produced solar energy and adjusts the charging, making it possible to use excess solar energy.

Technical Specifications

• Power: 2 x 22 kW
• Current: 6-32 A
• Weight: 10 kg
• Dimensions: 367 x 159 x 405 mm
• Cable/Outlet: Outlet
• Number of phases: 3
• IP rating: 55
• Built-in energy meter: Yes
• Tax deduction: Yes
• Manufactured in: Sweden
• RFID: Yes
• Adjustable power: Yes
• Load balancing: Between outlets
• OCPP: Yes, 1.6J
• WiFi: Yes
• Charging standard: Mode 3
• Operating temperatures: -30 °C to +45 °C
• Residual current device: RCD Type B built into each outlet
• Warranty: 3 years
