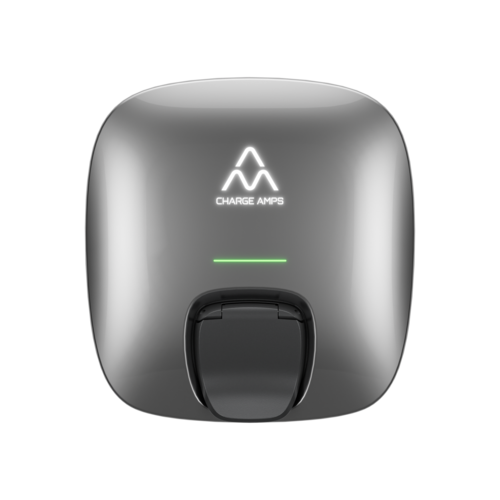

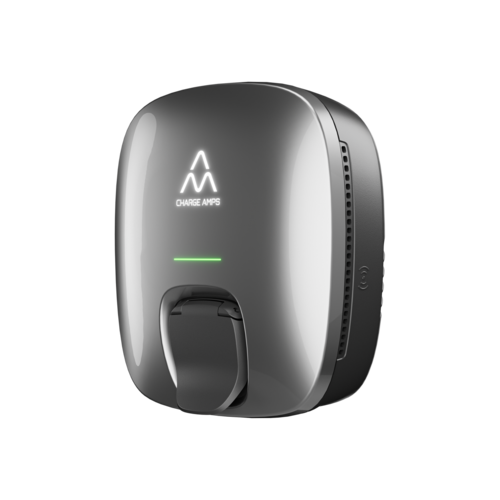

Charge Amps Luna – A Smart and Future-Proof Home Charger

Overview

Charge Amps Luna is the optimal solution for home charging with a capacity of up to 22 kW. With its compact design and smart features, it integrates seamlessly into your daily life, staying connected for a hassle-free charging experience.

Features

• Future-Proof Design: Equipped with ISO 15118 for plug-and-charge and vehicle-to-grid compatibility.
• Flexible Installation: Easy to install and configure, with support for WiFi and 4G connectivity.
• Load Balancing: Smart features for dynamic load balancing with Charge Amps Amp Guard, ensuring even power distribution.
• Green Charging: Charge with renewable energy from solar panels to reduce your environmental impact.
• Charge Amps App: Schedule and monitor charging directly via mobile, with access to statistics and history in the Charge Amps Cloud.
• Sustainable Construction: Robust and weatherproof (IP54 and IK10), adapted for Swedish conditions with temperatures ranging from -35°C to +45°C.

Installation & Configuration

Luna is designed for easy installation and configuration. With the installer app, it can quickly connect via Bluetooth and be configured for optimal performance. Incoming cables are easily connected, and software updates are automatic to ensure the charger always has the latest technology.

Integrated Solutions & Connectivity

With support for OCPP 1.6J, Charge Amps Luna can connect to the Charge Amps Cloud for seamless integration with other systems and solutions. WiFi and 4G connectivity allow you to monitor and control the charger from anywhere, and with the Charge Amps App, you can customize charging according to electricity prices and other needs.

Technical Specifications

• Power: Up to 22 kW
• Current: 6-32 A, 1-3 phase
• Voltage: 230/400 V
• Operating Temperature: -35°C to +45°C
• IP Rating: IP 54
• IK Rating: IK 10
• Residual Current Device: Built-in RCD Type-B (AC 30mA, DC 6mA)
• Connectivity: WiFi, 4G LTE, Bluetooth
• OCPP: 1.6J
• RFID: Yes
• Dimensions (WxDxH): 210x80x220 mm
• Weight: 1.3 kg
• Socket: Type 2, 22 kW
