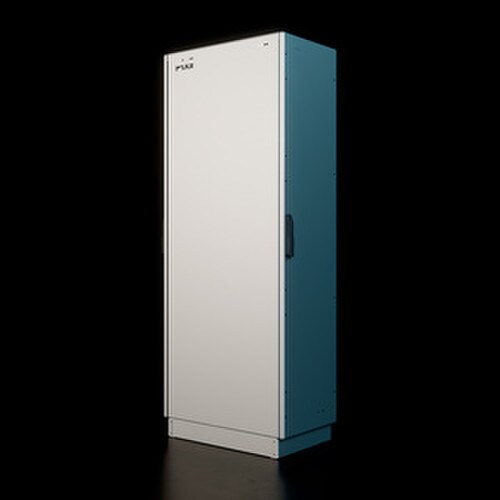

Battery Cabinet Pixii Home - cabinet only. Battery for the home market to increase self-consumption of solar energy, peak shaving (Reduce fees to your grid supplier by flattening the peaks in your energy consumption), electricity price arbitrage (Store energy from the grid when it is cheap and use it when electricity costs are high) and to sell support services FCR and FFR to generate revenue. A meter is usually required for support services. Cabinet with IP55 rating. Can be installed outdoors and withstand ambient temperatures between 45° C and -20° C. AC-coupled system. Can be configured with 10kW/10kWh, 10kW/15kWh, or 20kW/20kWh.

10kW/10kWh requires 3 Inverter 3300W AC/DC PixiiBox e-number 2760058 and 2 Battery Module 5.12kWh LFP Shoto e-number 2760059, 3 Dummy Panel PixiiBox e-number 2760057.

10kW/15kWh requires 3 Inverter 3300W AC/DC PixiiBox e-number 2760058 and 3 Battery Module 5.12kWh LFP Shoto e-number 2760059, 3 Dummy Panel PixiiBox e-number 2760057.

20kW/20kWh requires 6 Inverter 3300W AC/DC PixiiBox e-number 2760058 and 4 Battery Module 5.12kWh LFP Shoto e-number 2760059.

For frequency regulation, also add below, applicable for all configurations above:

1 2760086 Smart Meter Acuvim FFR/FCR

3 2760087 Current Transformer Pixii Home
